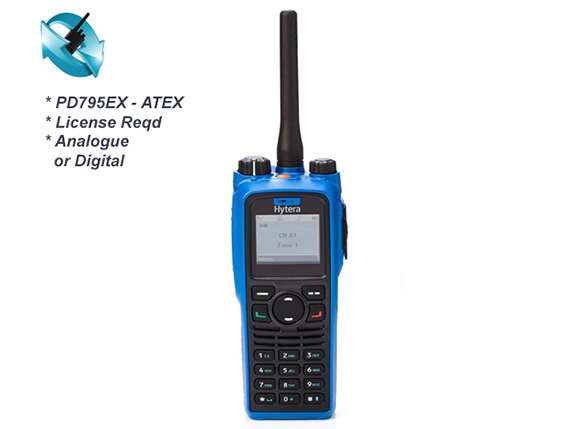

The PD715 Ex and PD795 Ex handheld radios are compliant
with the open ETSI standard for DMR. Compliance with the
European ATEX Directives, the FM standard, the IEC
standard, as well as its impressive, robust design,
guarantee reliable communication, even in hazardous
environments where explosive gases and combustible dust
are likely to occur.
Highlights:
Durability: European ATEX and IEC Directives are
complied with, and the North-American FM standard, these
handsets are compliant with the MIL-STD-810C/D/E/F/G
standard and are dust and water-resistant to protection
class IP67.
Fail-safe design: Using an inferior non safe battery
will automatically trigger an alarm.
Meticulously Encapsulated: Both the radios and their
batteries are encapsulated, all switches etc are sealed
from and protected by a seal against
hazardous explosive gases and dust particles.
High-strength LCD protective cover (PD795 Ex): The
high-strength LCD protective cover is extremely
scratch-resistant and can even withstand being struck by
a 1-kg hammer.
Innovative battery latch: The patented battery locking
system ensures that if the radio falls onto a hard
surface, the battery cannot detach.
Integrated GPS as standard: The integral GPS
means both radios can send location data to
a dispatcher. Dispatchers can use functions such as geofencing, radio
localization and GPS tracking to improve safety and
wellbeing.
Upgradeable software: Upgradeable software future proofs
your purchase an enables further updates. Access
enhanced encryption and Hytera DMR Trunking (Tier III)
via chargeable licenses.
In-built safety features: As well as GPS location
services, both radios also for lone worker, man down and
emergency mode to help safeguard the workforce.
Different digital and analogue operating modes: In
addition to conventional DMR radio (DMR Tier II) and
analogue radio, both radios support operation in DMR
trunked radio (DMR Tier III via chargeable license), XPT
Digital Trunking, Simulcast and MPT 1327.
Dustproof and waterproof: The two radios are resistant
to water and dust in accordance with protection class
IP67 and can therefore withstand a water depth of one
meter for at least half an hour.
Ergonomic product design: Even in low-light situations
the PD795 Ex display is easy to see. The big keys and
non-slip surface on both radio models ensure that they
can be reliably and safely operated, even when wearing
gloves.
Functions:
— Versatile voice calls:
Individual call, group call, broadcast call, emergency
call
— GPS functions (retrieving and sending location
data)
— Data services (text messages, group text
messages, control of the radio via API)
— Various
analogue dialing methods (HDC1200, DTMF, 2-tone and
—
5-tone dialing, squelch procedure/tone call
CTCSS/CDCSS)
— Supplementary services, radio check,
remote monitor, call alert, radio disable/enable
—
Direct menu languages available (PD795 Ex)
—
One-touch functions (incl. text messages, voice calls
and supplementary services)
— Scanning
— Automatic
cell re-selection (roaming) in IP multi-site systems
— Secure encryption with encryption algorithm ARC4 (40
bit) in accordance with DMRA or with optional algorithms
AES128 and AES256 (128 and 256 bit)
ATEX certification
All radios used in potentially
explosive environments must comply with the European
Union’s ATEX directives. The PD715 Ex and the PD795 Ex
are compliant with the ATEX Directives:
ATEX Gas
Protection: II 2 G Ex ib IIC T4
II Device group
(gases, vapors, mist and dust)
2 Device category,
protection level: very high
G For explosible
atmospheres (gas, vapor, mist)
Ex
Explosion-protected, ATEX and IEC Ex-certified ib Intrinsic
safety protection, transmitting power and surface
temperature are restricted
IIC Explosion group
(Acetylene, Hydrogen)
T4 Temperature class, surface
temperature limited to 135°C
ATEX Dust Protection: II
2 D Ex ib IIIC T120 °C
II Device group (gases,
vapors, mist and dust)
2 Device category, protection
level: very high
D For explosible atmospheres (dust)
Ex Explosion-protected, ATEX and IEC Ex-certified ib
Intrinsic safety protection, transmitting power and
surface temperature are restricted
IIIC Explosion
group IIIC (coal dust, metal dust)
T120°C Temperature
class, surface temperature limited to 120°C
ATEX
Protection for Mining Application: I M2 Ex ib I
I
Device group (mining)
M2 Device category: methane and
dust, protection level: very high
Ex
Explosion-protected, ATEX and IEC Ex-certified ib Intrinsic
safety protection, transmitting power and surface
temperature are restricted
I Explosion group I
(methane)
*See PDF download for
specifications.
.
