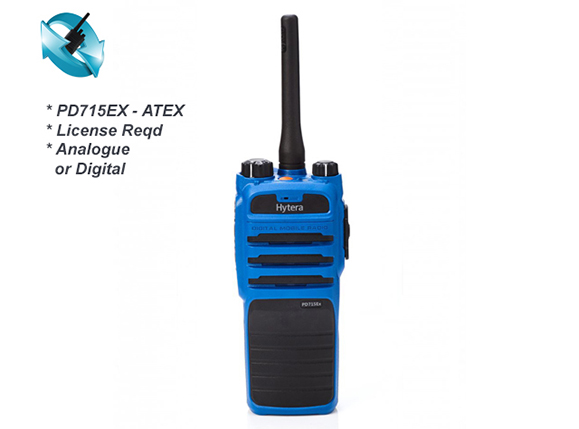

The PD715 Ex handheld radios are fully compliant
with the ETSI standard for DMR. There is full compliance
with the European ATEX Directives, the FM standard, the
IEC standard.
Highlights:
Durability: Besides meeting the
requirements of the European ATEX and IEC Directives, as
well as the North-American FM standard, these radios are
compliant with the MIL-STD-810C/D/E/F/G standard and are
dust and water-resistant to protection class IP67.
Fail-safe: Low level battery protection will
automatically trigger an alarm so that errors of this
type cannot occur. A full intrinsically safe accessory
portfolio is available to improve your user experience.
Meticulous encapsulation: Radios and
batteries are encapsulated, all internal
switches are protected and sealed against
hazardous explosive gases and dust particles.
Battery latch: The battery locking
system makes for safe operation: if the radio falls onto
a hard surface, the battery cannot come off the unit.
Integrated GPS: The GPS module means that both radios
are able to send location data to a dispatcher system.
Upgradeable software: Upgradeable software helps to
extend the life of your handset. Access
enhanced encryption and Hytera DMR Trunking (Tier III)
via chargeable licenses at extra cost.
In-built safety features: GPS location services as
standard, the radio has also for lone worker, man down
and emergency mode.
Different digital and analogue modes: The PD715EX ATEX radio supports operation in DMR
trunked radio (DMR Tier III via chargeable license), XPT
Digital Trunking, Simulcast and MPT 1327.
Dustproof and waterproof: PD715EX ATEX handset is resistant
to water and dust in to protection class IP67 and withstand a water depth of one
meter for at least half an hour.
Ergonomic design: The PD795 Ex display is easy to see
even when there is a low ambience. The keys and
non-slip surface on the PD715EX ATEX ensures that it
can be reliably and safely operated, even when wearing
gloves.
Functions:
— Various operating modes, choice between
analogue or digital handheld radio (DMR), as well as
MPT, XPT and DMR trunked radio.
— GPS functions (retrieving and sending location
data)
— Data services (text messages, group text
messages, control of the radio via API)
— Various
analogue dialing methods (HDC1200, DTMF, 2-tone and
—
5-tone dialing, squelch procedure/tone call
CTCSS/CDCSS)
— Supplementary services, radio check,
remote monitor, call alert, radio disable/enable
—
Direct menu languages available (PD795 Ex)
—
One-touch functions (incl. text messages, voice calls
and supplementary services)
— Scanning
— Automatic
cell re-selection (roaming) in IP multi-site systems
— Secure encryption with encryption algorithm ARC4 (40
bit) in accordance with DMRA or with optional algorithms
AES128 and AES256 (128 and 256 bit)
ATEX certification
All radios used in potentially
explosive environments really have to comply with the EU ATEX directives. The PD715 Ex and the PD795 Ex
are fully compliant with the ATEX Directives:
ATEX Gas
Protection: II 2 G Ex ib IIC T4
II Device group
(gases, vapors, mist and dust)
2 Device category,
protection level: very high
G For explosible
atmospheres (gas, vapor, mist)
Ex
Explosion-protected, ATEX and IEC Ex-certified ib Intrinsic
safety protection, transmitting power and surface
temperature are restricted
IIC Explosion group
(Acetylene, Hydrogen)
T4 Temperature class, surface
temperature limited to 135°C
ATEX Dust Protection: II
2 D Ex ib IIIC T120 °C
II Device group (gases,
vapors, mist and dust)
2 Device category, protection
level: very high
D For explosible atmospheres (dust)
IIIC Explosion
group IIIC (coal dust, metal dust)
T120°C Temperature
class, surface temperature limited to 120°C
ATEX
Protection for Mining Application: I M2 Ex ib II
Device group (mining)
M2 Device category: methane and
dust, protection level: very high
*See PDF download for
specifications.
