Features

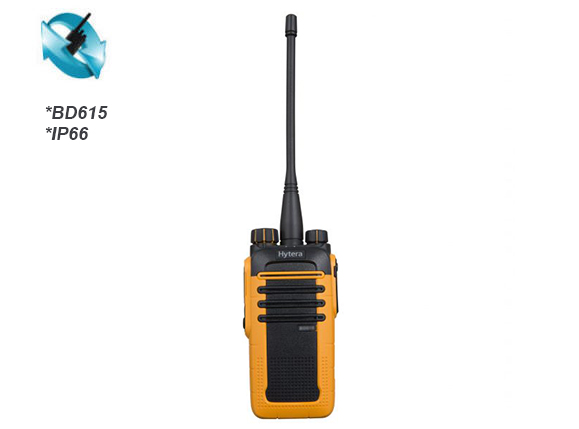

The BD615 radio can operate on analogue and digital
modes and is a very good all round radio that can take
punishment in difficult surroundings. You can switch
between two operation modes easily and it helps you to
communicate with analogue radios.
Slim & Lightweight: The BD505 weighs just 140g, easily
held, clipped or put in your pocket, making it the ideal
companion for communicating throughout your shift.
Digital performance: Although limited to licence-free
power output, the BD505LF still delivers excellent
reception and talk range. Based on TDMA technology, BD5
series in digital mode can work up to 16 hours @1500mAh
or 22 hours@2000mAh in 5-5-90 mode.
Rugged & Reliable: The BD615 features a bold two-colour
designed and tested to meet Military Standards 810 G,
including temperature shock, vibration, high & low
temperature and humidity. The IP66 dust-and-water-proof
design guarantees the devices reliability across
different environments.
Clear Audio: With digital encoding and correction
technology, human voice is transmitted clearer without
noise, even over greater distances. This is a new
experience in the world of improved audio quality.
Anti Interference: Adopted digital encoding and error
correcting module, BD615 has the ability to avoid signal
interference on the same frequency.
DMR
Signal: With DMR signaling, transmitting group call, private
call and all call with Pin ID enables ease of use.
Repeater Modes: Utilising a DMR version II repeater extends the
communication range.
Dual capacity direct mode: In
direct mode, you can have two voice calls simultaneously
from DMR two time slots. This feature can be used to
increase the radio capacity at no extra costs or frequency
license.
VOX: This feature allows you to activate
the radio microphone via your voices volume, and frees your
hand from PIT.
Scanning: Allow BD615 listening to
communication activities on other channels.
Specifications:
General
Frequency Range
UHF:400-470 MHz VHF:136-174 MHz
Channel Capacity BD615:
48,
Zone Capacity BD615: 3,
Channel Spacing
25/12.SKHz
Operating Voltage 7.2V
BD615 with
INTEGRAL display
Battery 1500mAh (Li-Ion) 2000mAh
(Li-Ion)
Battery Life (5/5/90 )
Analogue/Digital:
11/17 hours(1500mAh)
Weight : 240g
Dimensions
BD615:10Bx54x29mm
Frequency Stability ±0.5ppm
Antenna Impedance 50 Ohms
RECEIVER
Sensitivity (Digital) 0.22µV / BER 5%
Sensitivity
(Analogue) 0.22µV (Typical) (12d8 SIN AD) 0.4µV (20dB SIN
AD)
Adjacent Selectivity TIA-603 60dB@ 12.SKHz/?OdB@
25KHz
Spurious Response Rejection: TIA-603 65dB@
12.5/25KHz
Inter-modulation TIA-603 70dB@ 12.5/25KHz
Hum &Noise 65dB@ 12.SKHz 65dB@25KHz
Rated Audio
Power Output 0.5w
Rated Audio Distortion <3%
Audio
Response +1 --3dB
Conducted Spurious Emission <-57dBm
TRANSMITTER
VHF High power: 5W
RF Power
Output VHF Low power: 1 W
UHF High power: 4W
UHF Low
power: 1W
FM Modulation 11 KOF3E@ 12.SKHz 16KOF3E@ 25KHz
4FSK Digital Modulation 12.SKHz Data Only: 7K60FXD
12.SKHz Data & Voice: 7K60FXW
Conducted/Radiated
Emission -36dBm <1GHz,-30dBm >lGHz
Modulation Limiting
±2.SKHz@ 12.SKHz ±5.0KHz@ 25KHz
FM Hum & Noise 40dB@
12.SKHz 45dB@25KHz
Adjacent Channel Power 60dB@ 12.SKHz,
70dB @25KHz
Audio Response +1 --3dB
Audio Distortion
<3%
Digital Vocoder Type AMBE+2
Digital Protocol
ETSI-TS102 361-1,-2,-3
*See PDF download for
specifications.
