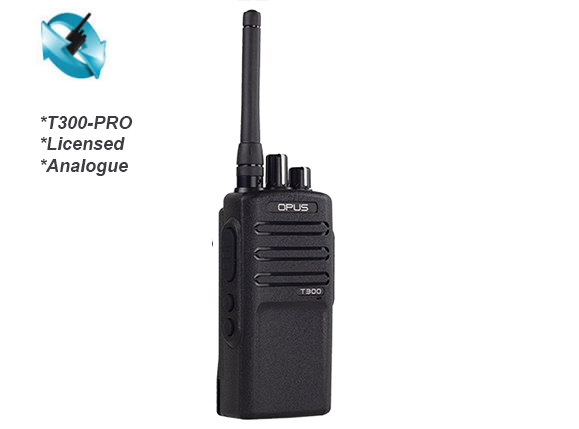

OPUS T3000 Series Two-way Radio Handset

Simple controls and voice annunciation keeps operation easy and intuitive for all your users. The T300 shares the same audio accessories, batteries and chargers as its predecessor. The Opus T300 is the perfect tool for simple and
affordable on-site communication.

Key Features

•  Ideal for office & light industrial users
• Compact size & light weight
• Simple to operate
• Includes battery, charger & belt-clip
• Motorola compatible audio jack
• Programmable function buttons
• IP55 ingress protection
• Voice annunciation
• High capacity 2200mAh Li Ion battery
• Motorola compatible, two-pin accessory jack for the widest choice of audio accessories
• Extensive range of additional accessories - including headsets, microphones, carry cases, car chargers, programming kits and more - to enhance operation and suit your own operating requirements.

SPECIFICATIONS

General

• Power Supply 7.4VDC ±20%
• Frequency Coverage 400~480 MHz
• Channel Spacing 12.5kHz/25kHz
• Channel Capacity 16
• Operating Temperature -20~+55°C
• Dimensions (H x W x D) (with standard battery) 130 x 57 x 35mm
• Weight (with standard battery) 250g
• Battery life (5:5:90) 14+ hours

Transmitter

• RF Power Low: 1W, High: 4W
• Frequency Stability ±1.5ppm
• Spurious Emissions -36dBm<1 GHz, -30dBm>1 GHz
• FM Modulation Mode 12.5KHz: 11 KØF3E/25KHz: 16KØF3E
• Ext. Microphone Connector Motorola 2-pin

Receiver

• Sensitivity 0.3µV /-117dBm (12dB SINAD)
• Intermodulation 60dB
• Adjacent Channel Selectivity 60dB@12.5kHz/70dB@25kHz
• FM Hum & Noise 40dB
• Spurious & Image Rejection 70dB
• Rated Audio 1000mW@ 16Ω 5% THD
• Audio Distortion@Rated Audio <3%
• Audio Response (300-3000Hz) +1~-3d

*See PDF T3000 Series.
