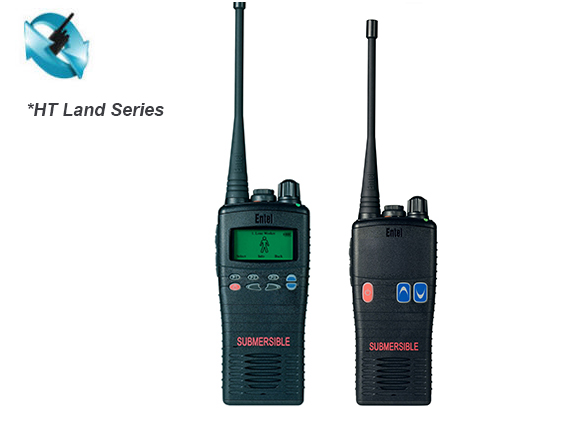

Why Entel HT Commercial Land portables?
- Superior voice quality and volume
- IP68 (2 metres depth for 4 hours) submersible
- MIL-STD 810/C/D/E&F standard robust construction
- High capacity (2000 mAh) Li-Ion batteries as
standard
- Established & proven portables based on over
20-Years’ experience
Superior Audio
Using the latest compander noise reduction technology,
Entel’s Commercial Marine portables deliver loud & crisp
audio no matter what environment you are in.
Commercial Grade Construction
Exceeding MIL-STD 810C/D/E/F rating, the HT Series 2.0 is
designed to withstand shock, vibration, dust and moisture,
ensuring a tough enduring performance and many years of
trouble free use, even in the most hostile
environments.
Intelligent Li-Ion Battery
Entel’s Lithium-Ion Batteries provide the following key
advantages: Extended Talk Time – The 2000mAh capacity of
Entel’s Lithium-Ion batteries is up-to double that of other
makes, therefore ensuring maximum talk-time.
Li-Ion Chemistry – Entel’s Li-Ion batteries are not prone
to the dreaded memory effect that Ni-Cad and Ni-MH battery
packs suffer from. This ensures that you always have a good
charge every time you take the battery from its charger.
Simple or Sophisticated
Entel’s HT portables are offered in three levels of
sophistication:
- Entry – The Entry range of HT portables offer simple
Push-toTalk functionality.
- Selcall - Selcall adds individual and group calls
plus emergency & remote services.
- MPT1327 – Trunked (MPT1327) radios offer the most
flexibility and are designed for larger systems
2 Metres, 4 Hours Submersible
Conforming to IP68 standard, the HT Series 2.0 offers the
highest submergibility rating of any manufacturer. This
unique Series protects against corrosion, withstanding total
immersion in water to a depth of 2 metres for 4 hours to
protect against the likely hazards encountered in any field
of operation.
Intrinsically Safe
ATEX Approved IIC - The HT900 range of ATEX certified
portables meet IIC T4.
ATEX Approved IIA - For those users not restricted to the
IIC 1 watt regulatory classification.
IECEx Approval - The HT500 range of intrinsically safe
certified portables are suitable for those users who do not
need to comply with the European ATEX standard.
GMDSS MED
Entel’s HT649 GMDSS portable is MED certified and carries
the essential Wheel Mark logo. Designed for those requiring
a full featured and outstandingly tough GMDSS portable, the
HT649 is one of the most advanced MED certified GMDSS
portables available.
The HT649 is available in two packages: Pack 1 includes
HT649 radio & Primary (emergency) battery. Pack 2 as Pack 1
plus Secondary (rechargeable) battery and charger.
Technical Specifications
General Specification
Frequency range VHF 156 to 163.275MHz (INT, USA. CAN)
Frequency range UHF 400 to 470MHz
Frequency range UHF UP
Band 450 to 520MHz
Channel Spacing VHF – 25KHz UHF –
25KHz / 12.5KHz
Operating Voltage 7.4V
Battery
Li-Ion 2000mAh (1800mAh ATEX & IECEx)
Weight (with battery) 277g
Dimensions* 130mm (h) x 59.5mm
(w) x 37mm (d)
Frequency Stability 2.5ppm
Operating Temperature -20
to +55°C
Dust and Liquid Intrusion IP68 submersible 2
metres for 4 hours
Drop, Packing, Vibration & Shock
MIL-STD 810 C/D/E/F
All specifications are subject to
change without notice. For the complete range of accessories
please call us.
* Dimensions are based upon a radio with
an attached battery, excluding knobs, antenna and
protrusions.
Supplied package includes: 2000mAh Li-Ion battery pack,
charger, spring loaded belt clip, high effi ciency antenna &
quick start user guide (ATEX models are supplied with
an 1800mAh 7.4v Li-Ion Battery).
Transmitter
Power Output VHF (HI/LOW) 5W / 1W
Power Output UHF
(HI/LOW) 4W / 1W
Power Output ATEX IIC 1W
Power Output
ATEX IIA (HI/LOW) 4W / 1W
Power Output IECEx (HI/LOW) 4W
/ 1W
Modulation Type 8K0G3E / 16K0G3E (12.5 / 25KHz)
Receiver
Sensitivity Better than -118dBm 12dB Sinad
Rated
Audio Output 1W
Intermodulation -42dBm
Adjacent
Channel Selectivity 60 / 70 (12.5 / 25KHz)
Spurious
Response Rejection -37dBm
Spurious Radiations 2.0nW/20nW
<1GHz/>1GHz
